SCT-36 Transformateur de courant ouvrant
Primary Current Range:5A~600A RMS (50/60Hz), RL≦10Ω
Coil of Secondary Circuit:3000±2 turns
Coil Resistance of Secondary Circuit:105Ω±10% (at 25℃)
Compact size work up to 500A AC
Coil of Secondary Circuit:3000±2 turns
Coil Resistance of Secondary Circuit:105Ω±10% (at 25℃)
Compact size work up to 500A AC
modèle :
SCT-36
- Primary Current Range:5A~600A RMS (50/60Hz), RL≦10Ω
- Application frequency:50/60KHz
- Maximum Primary Current:600A RMS continuous
- Primary Conductor Hole:φ35.1mm

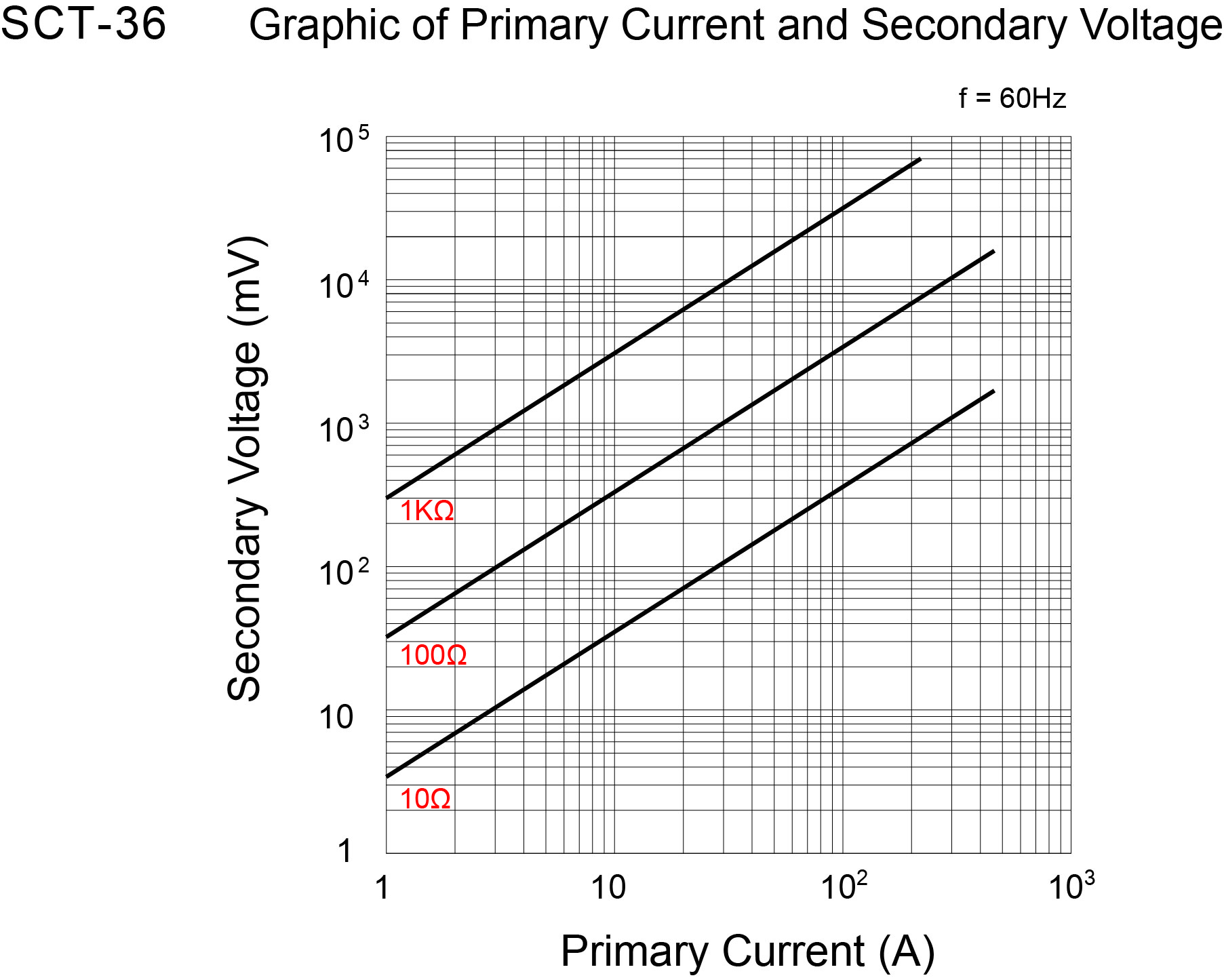

- Output Features:refer to graphic
- Coil of Secondary Circuit:3000±2 turns
- Coil Resistance of Secondary Circuit:105Ω±10% (at 25℃)
- Enclosure Material:NYLON Flame Retardant (UL-94V0)
- Output Cord Length:Typical 1.5mm 22AWG
- Max circuit voltage:AC 600V
- Dielectric Strength:2500V / 1mA / 1min between primary conductor hole and output
- Open circuit protection:10.2V
- Insulation Resistance:>100MΩ at 500V DC between primary conductor hole and output
- Weight:approx. 380g
-
Operating Condition:-20~60℃,
below 80% R.H. no condensation
- Storage Condition:-30~70℃, below 70% R.H. no condensation

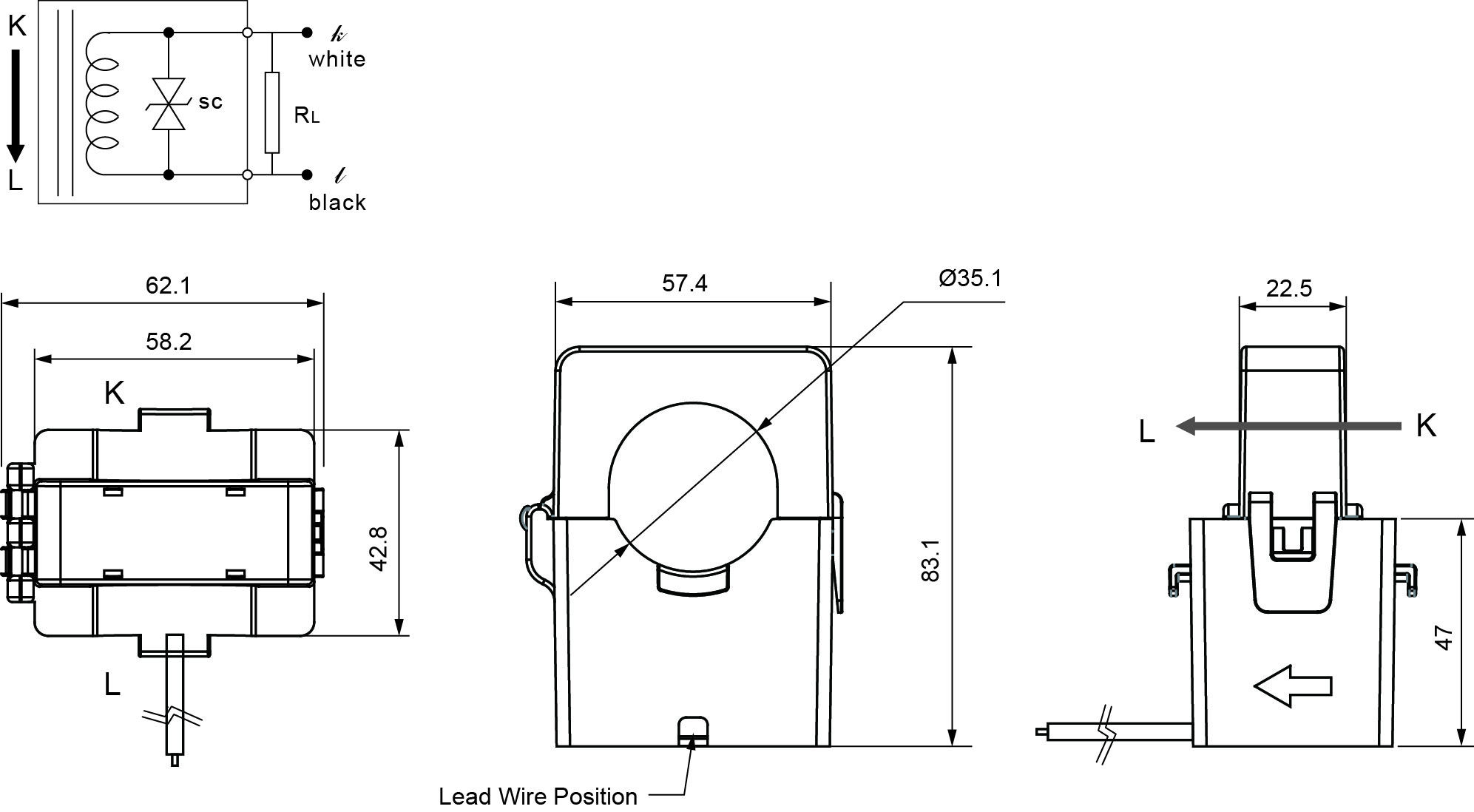

Dimension:
- Split-core type with clip-on design, easy installation at set-up devices and distribution board
- Built-in circuit protection from over voltage even secondary circuit open
- Compact size works up to 500A AC
- Cost-effective solution
- Two ends hook attached to secure primary conductor with cable-ties
- Applicable for power saving facilities and overload protection systems
- Applicable for 100mA secondary output of current transformer
- Isolated plastic case recognized according to UL 94-V0
