SCT-16A Transformateur de courant ouvrant
Primary Current Range:10mA~120A RMS (50/60Hz), RL≦10Ω
Coil of Secondary Circuit:3000±2 turns (With 10.2V Suppressor inside)
Coil Resistance of Secondary Circuit:290Ω±10% (at 25℃)
Compact size work up to 120A AC
Coil of Secondary Circuit:3000±2 turns (With 10.2V Suppressor inside)
Coil Resistance of Secondary Circuit:290Ω±10% (at 25℃)
Compact size work up to 120A AC
modèle :
SCT-16A
- Primary Current Range:10mA~120A RMS (50/60Hz), RL≦10Ω
- Application frequency:10~5KHz
- Maximum Primary Current:300A RMS continuous
- Primary Conductor Hole:φ16mm

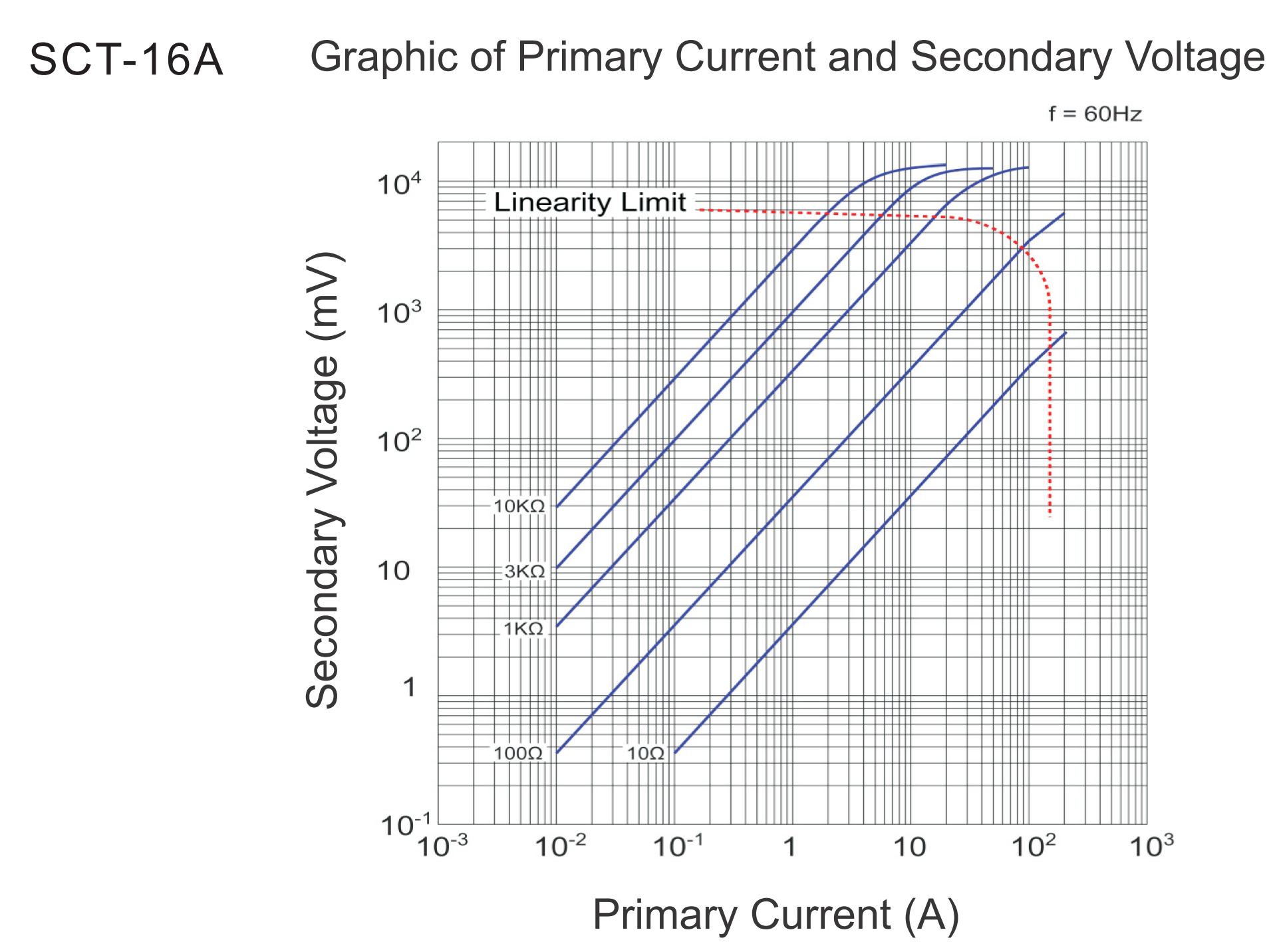

- Output Features:refer to graphic
- Coil of Secondary Circuit:3000±2 turns (With 10.2V Suppressor inside)
- Coil Resistance of Secondary Circuit:290Ω±10% (at 25℃)
- Enclosure Material:NYLON Flame Retardant (UL-94V0)
- Output Cord Length:Typical 700mm (different length also available with customer’s request)
- Max circuit voltage:AC 600V
- Dielectric Strength:1000V AC / 1min between primary conductor hole and output
- Open circuit protection:10.2V (Zener diode)
- Insulation Resistance:>100MΩ at 500V DC between primary conductor hole and output
- Weight:approx. 70g
-
Operating Condition:-20~60℃,
below 80% R.H. no condensation
- Storage Condition:-30~70℃, below 70% R.H. no condensation

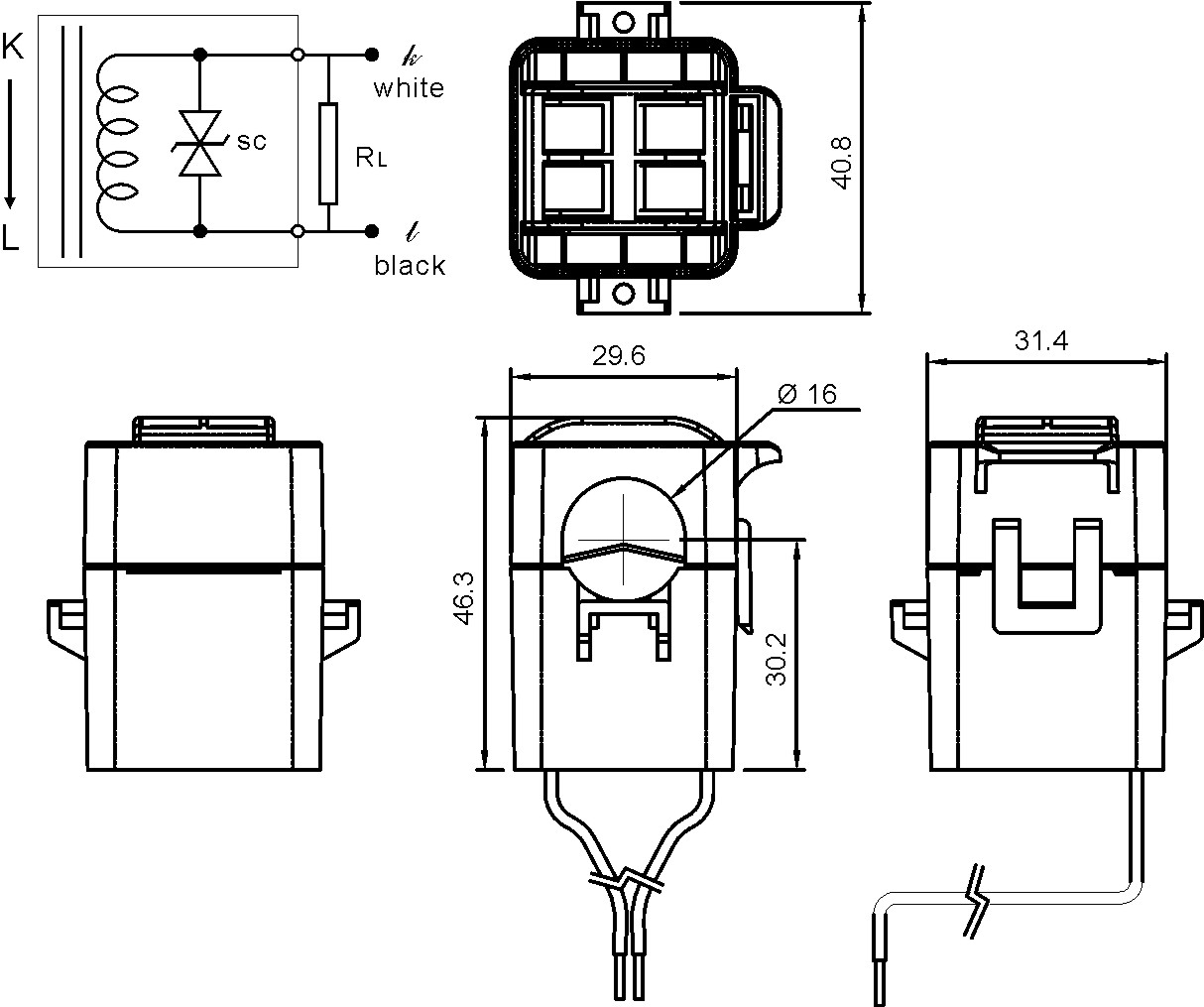

Dimension:
- Split-core type with clip-on design, easy installation at set-up devices and distribution board
- Built-in circuit protection from over voltage even secondary circuit open
- Compact size work up to 120A AC
- Cost-effective solution
-
Two ends hook attached to secure
primary conductor with cable-ties
- Applicable for power saving facilities and overload protection systems
- Applicable for 5A secondary output of current transformer
- Isolated plastic case recognized according to UL 94-V0
