● Display : LED type 3 digits (999)  Dual display (Red) digit height 0.28" (7.1mm)
● Operating Supply Voltage : DC 4.5V ~ 24V   (between line S1-black & S2-red)
● Measuring Voltage : DC 0V~100V   (between line L1-black & L2-red)
● Measuring Current :  DC 0A~10A    (between line L1-black & L3-blue)

● Power Dissipation :approx. 20mA

Temp./ Humidity :

Operating : -10~55°C / Below 80% R.H. (No Condensation)

Storage : -15~60°C / Below 70% R.H. (No Condensation)

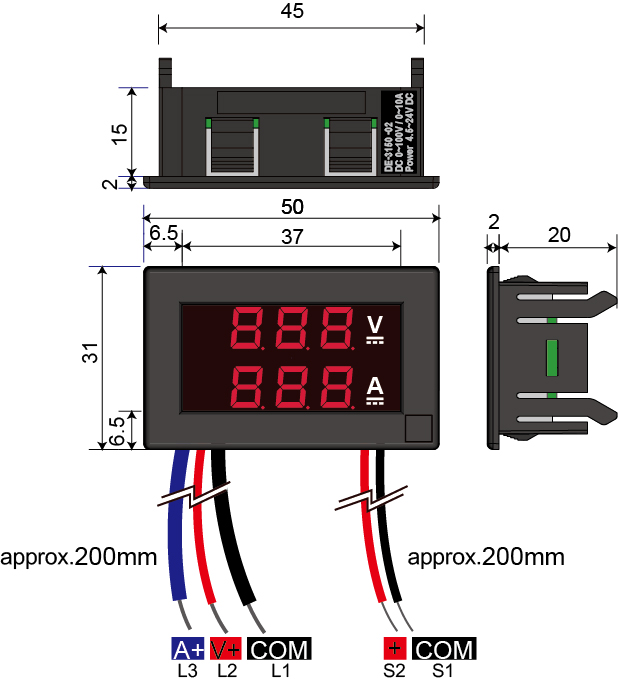

Dimension

 31 (W) x 50 (L) x 20 (H) mm

Panel Cutout

 26.5x45.5(mm)

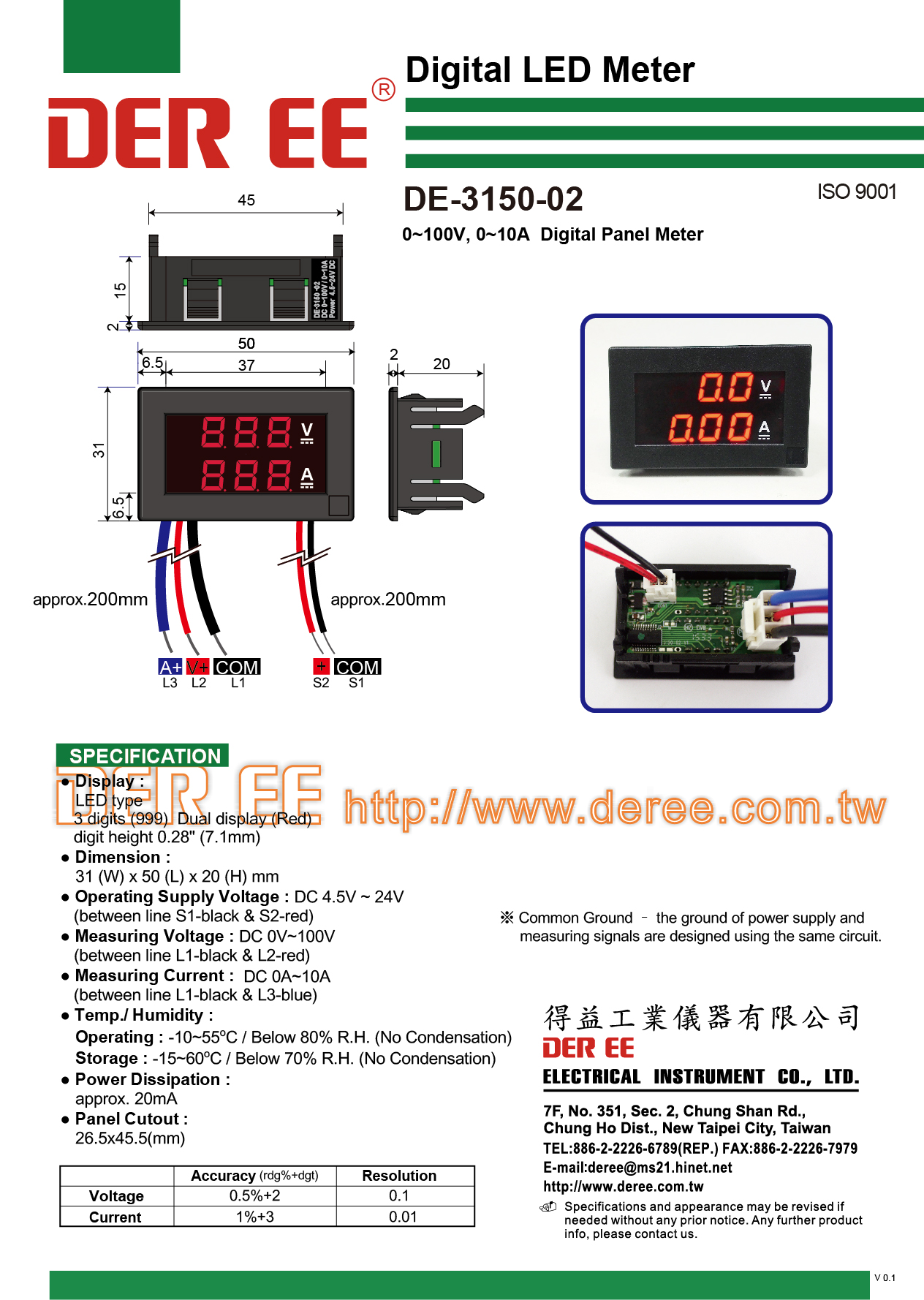

0~100V, 0~10A  Digital Panel Meter
