• DE-2850 VU-mètre

DE-2850 VU-mètre

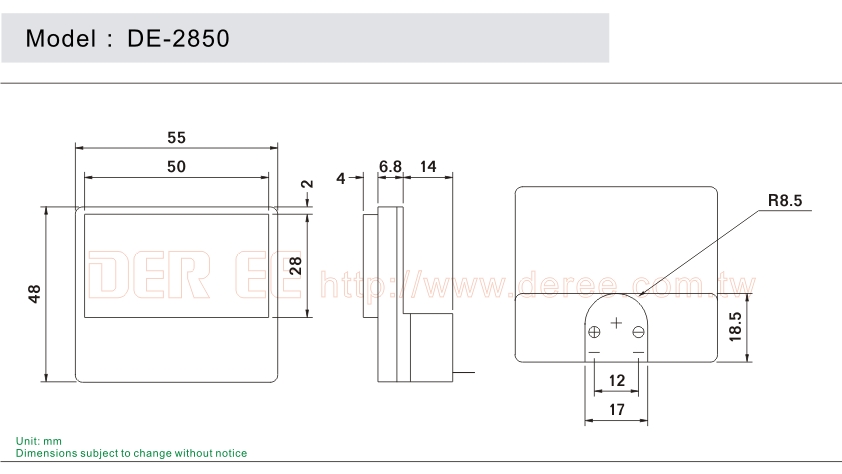

● SIZE : 55 x 48 x 24.8 mm
modèle : DE-2850


When you order DER EE VU meter, please indicate about the following information:

■ Meter Dimension

Please indicate meter size

■ Internal Resistance

250Ω , 650Ω, 750Ω, 1200Ω

■ Sensitivity

200µA , 250µA , 500µA, 1mA

■ Pointer Color

As your color request

■ Scale Plate

Custom design according to your drawing

■ Install position of the level meter

Vertical or horizontal

■ Popular spec

500µA/650Ω


proimages/edm_vu/DE_2850.jpg


● SIZE : 55 x 48 x 24.8 mm
